mini fiber laser marking machine Portable 20W Fiber Laser Marker Max Raycus Mini Laser Engraving Machine for Jewelry Metal

1.Customized laser power options between 20W, 30W, and 50W, offering flexibility for diverse marking applications. 2.Equipped with an air cooling system for continuous and efficient operation, reducing the need for frequent maintenance. 3.Works with various graphic formats including AI, PLT, DXF, BMP, Dst, Dwg, LAS, and DXP, easily accommodating different design sources. 4.Suitable for various industries such as hotels, garment shops, building material shops, and more, providing a versatile and essential tool. 5.Features a unique and user-friendly interface, ensuring easy operation and minimizing the learning curve for new users.

Classification:

fiber laser marking machine

E-Mail: jwdevin@chinajwlaser.com

Product Details

Mini fiber laser marking machine Portable 20W Fiber Laser Marker Max Raycus Laser Engraving Machine for Jewelry Metal

SPECIFICATION

Product name	mini fiber laser marking machine
source brand	MAX/RAYCUS
laser power	20w/30w/50w

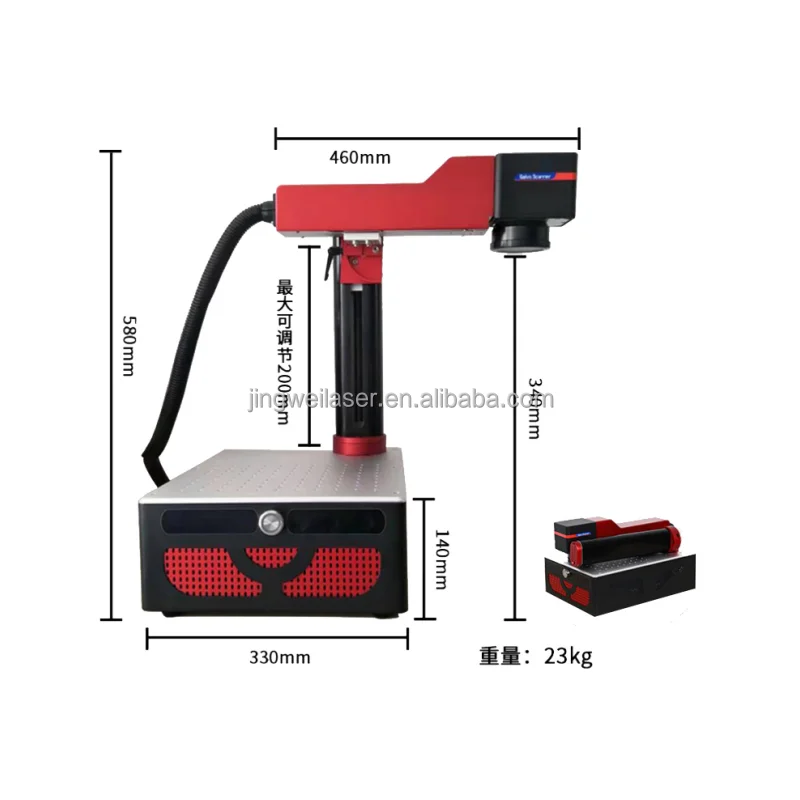

working area	7070mm-150150mm(optional)
laser wavelength	1064nm
marking speed	0-8000mm/s
marking depth	0.01~1mm
electrictity demand	110v/220v (According to the needs of the country）
Minimum line width	0.01mm
Minimum character	0.1mm
Repeatability accuracy	+_0.002mm
Graphic format supported	dxf, plt, ai, eps, svg, bmp, jpg, png, tif, txt, csv
Acceptable materials	metal, nonmetal, plastic,leather,,paper etc
Warranty	1year

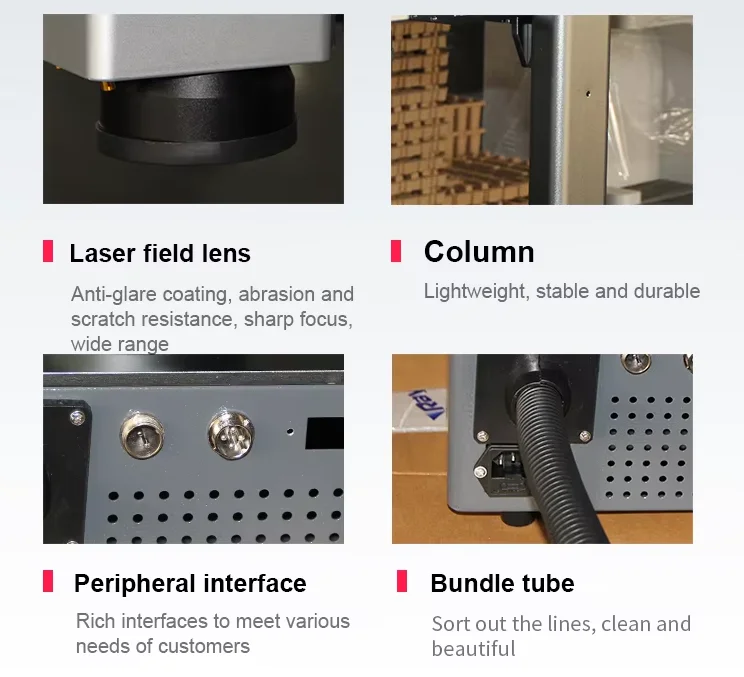

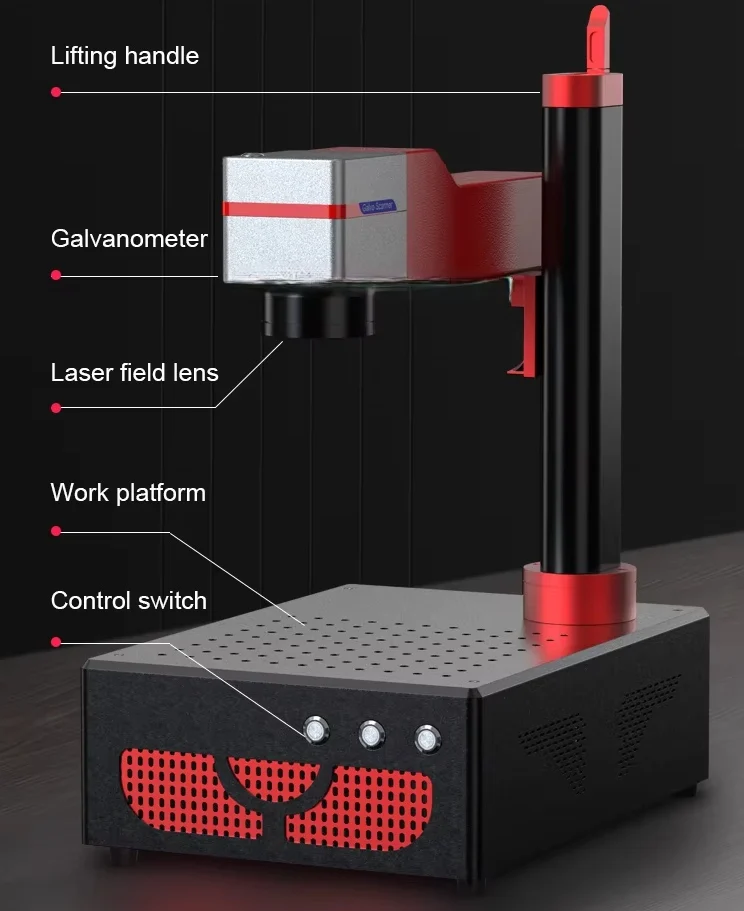

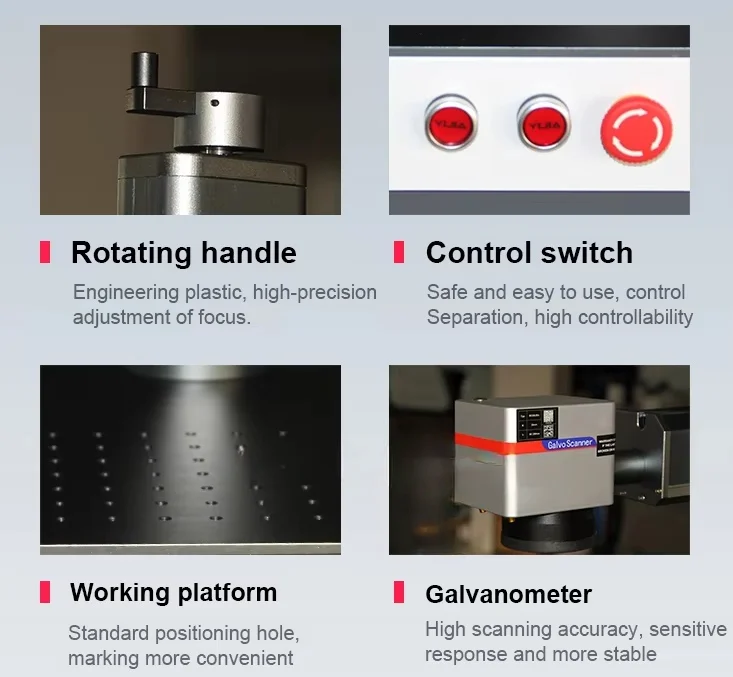

Machine configuration

1. laser source :Max or Rycus laser source 2. Control card : original BJJCZ card
3. Software : Ezcad 2.14.16 4. Galvanometer : SINO brand with 2 red lights
5. Lens : F-theta 1064nm lens 6. Power supply :Meanwell
7. Power input : 110v or 220v 8. Electric move column
9. The column can turn 360
