1500w-3000W Fiber Laser Cutting Machine for Cutting 10mm Sheet Metal, Such As Carbon Steel, Stainless Steel
The 1530 fiber laser cutting machine is a professional metal-processing tool, with a 1500mm×3000mm working area. Powered by a 500W-2000W fiber laser, it cuts stainless steel, carbon steel, aluminum precisely (≤0.1mm error) and quickly. It supports DXF/PLT formats, works with Windows, and fits sheet metal, hardware, auto-parts industries, ensuring stable, efficient performance.
Classification:
Product Details
1500w-3000W Fiber Laser Cutting Machine for Cutting 10mm Sheet Metal, Such As Carbon Steel, Stainless Steel
| Product name | JW-1530 fiber laser cutting machine |
| Laser source(optional) | EVERFOTON / RECI / MAX |
| Control system | Au3tech / Raytools 3000x / Bochu 1000 / Bochu 2000e |
| Cutting head | Au3tech / Raytools 110 / Bochu |
| Servo motor | Leadshine 750W / Bochu 1000W |
| Reducer | SHIMPO |
| Laser power(optional) | 1500W / 3000W |
| Application material | Metal |
| Cutting area | 1500mm*3000mm |
| Positioning accuracy | ±0.05mm |
| Cooling model | water cooling |
| Cutting speed | 35m/min |
| Cutting depth | 0-10mm |
| Minimum line width | 0.1mm |
| Operating volitage | 380V / 220V |

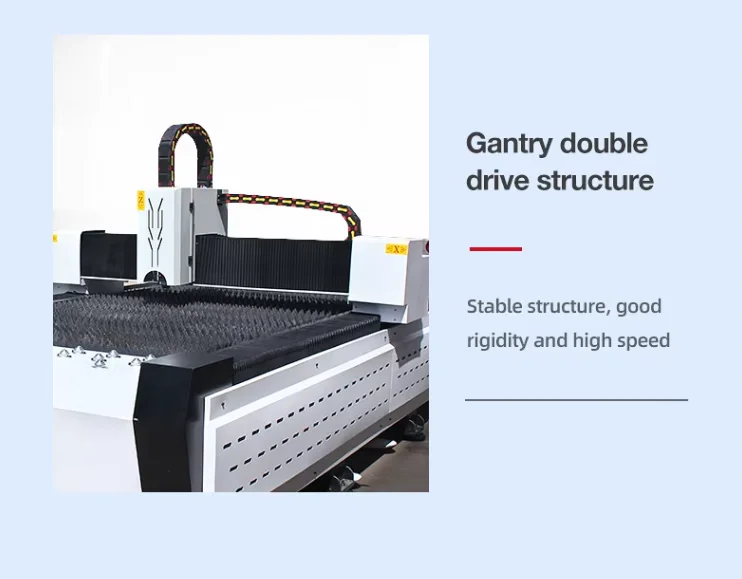

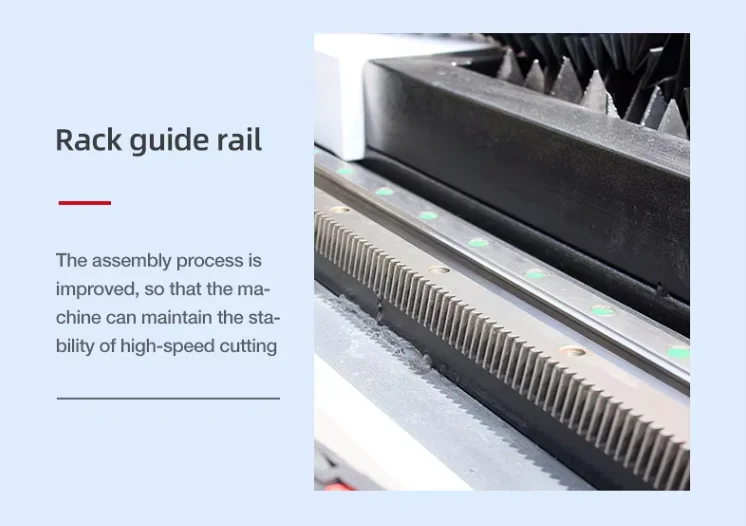

| Transmission method | Precision rack dual-drive + ball screw |
| Machine dimensions | 4400mm*2400mm*1500mm |
