Fiber laser marking machine raycus for the keyboard

Classification:

fiber laser marking machine

E-Mail: jwdevin@chinajwlaser.com

Product Details

Product introduction:

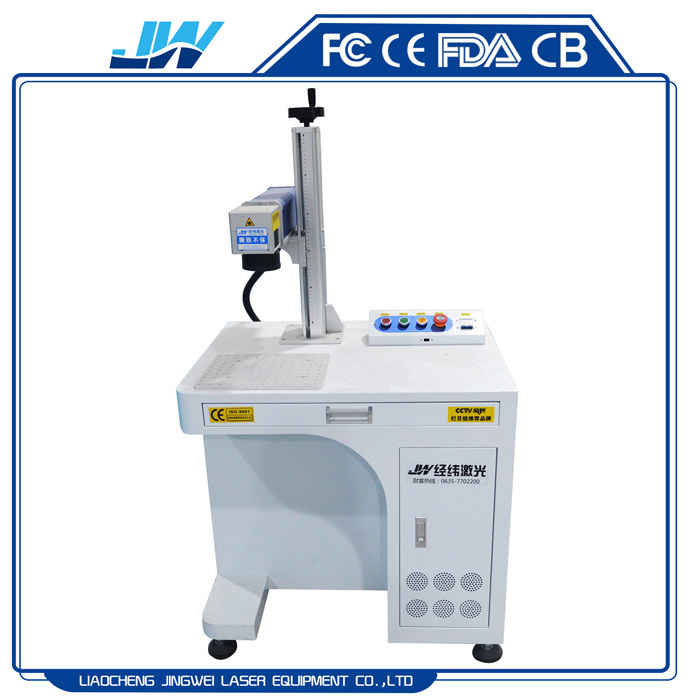

1.Desktop type laser marking machine

2.Laser source:Raycus,Max

3.Laser power:20w,30w,50w

4.Work area:100*100mm-300*300mm

5.BJJCZ motherboard

6.Galvanometer:SINO

7.Lens:Opex

Fiber Laser marking machine adopts the third generation (the most advanced) solid-state fiber laser to create the super fine effect of marking. This model is of integral structure, no pollution, no optical power coupling loss, air cooling, high efficiency and stability, its life is as long as 120000 hours. It has many advantages, such as quality beam, small volume, easy transportation, low energy consumption and so on. Laser configuration: 20W,30W,50W.

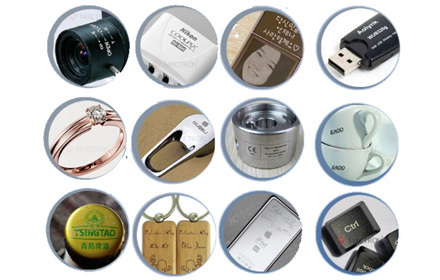

Applicable materials:
Metallic materials and some non-metallic materials, electronicseparation components, integrated circuits, electrical circuits,mobilc communications, precision instruments, glasses, clocks,8 computer keyboards, jewelry, hardware, kitchen appliances,accessories,sanitary ware, etc

Laser Marking Machine Technical Parameter

Modle No	JW-F20
Laser type	Max、Raycus、Super laser
Laser Power	20w/30w/50w
Laser Wavelength	1064nm
Marking Area	100100mm-300300mm
Beam QualityM2	<1.5
Power Supply	220V/50Hz/12A
Consumed Power	<500W
Cooling System	Air Cooling
Marking Speed	≤7000mm/s
Minimum Line Width	0.01mm
Minimum Character	0.15mm
Marking Depth	<0.2mm(depend on material)
Repeat Accuracy	+/-0.001mm
The Operating System	WinXP/Win7
Laser module life	100000 hours
Packaging size	920mm7600mm11200mm

- Delivery and Shipping

1.The delivery lead time would be 5-7 working days after recieving the payment.

2.As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.

Packaging details	Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety;
Shipping methods	1.Shipping by sea
	2.By air
	3.By express: TNT, EMS, DHL, Fedex, UPS ect

After-sale services:

Provide considerate services to minimize clients' worries.

1>. Assist clients to prepare for the first construction scheme;

2>. Install and debug the equipment;

3>. Train the first-line operators;

4>. Examine the equipment;

5>. Take initiative to eliminate the troubles rapidly;

6>. Provide perfect service;

7>. Provide technical exchanging
