Split fiber laser marking machine

Retail price
0.0
Market price
0.0
Number of views:
1018
Product serial number
0001
Quantity
-
+
Stock:
300
1
Product description

fiber laser marking machine
Send us your original sample or email us your sample picture, we can test and make free sample for your confirmation within 10-20 minute !!!

Product description:
1. The optical fiber laser marking machine uses the laser beam to mark the surface of various substances permanently.
2. The marking effect is to show the deep material through the evaporation of the surface material or to "carve" the trace through the chemical and physical changes of the surface material caused by the light.
3. Or to burn part of the material by the light, showing all kinds of patterns, characters, barcodes and other graphics that need to be etched.

Applicable field and product effect:
1. Widely used in integrated circuit chips, computer accessories, industrial bearings, clocks and watches, electronic and communication products.
2. Aerospace components, all kinds of auto parts, household appliances, hardware tools, dies, wire and cable, food packaging, jewelry, tobacco, and many fields .
3. Military things graphics and text markup, mass production line and homework.
fiber laser marking machine for the gobo
fiber laser marking machine for the  logo proijection
fiber laser marking machine for the led log
fiber laser marking machine for the maker
fiber laser marking machine for the printer
fiber laser marking machine for the anti-dazzling screen
fiber laser marking machine for the metal
fiber laser marking machine for the ring
fiber laser marking machine for the cup
fiber laser marking machine for the Vacuum cup
fiber laser marking machine for the medical instruments
fiber laser marking machine for pen
fiber laser marking machine for power brank

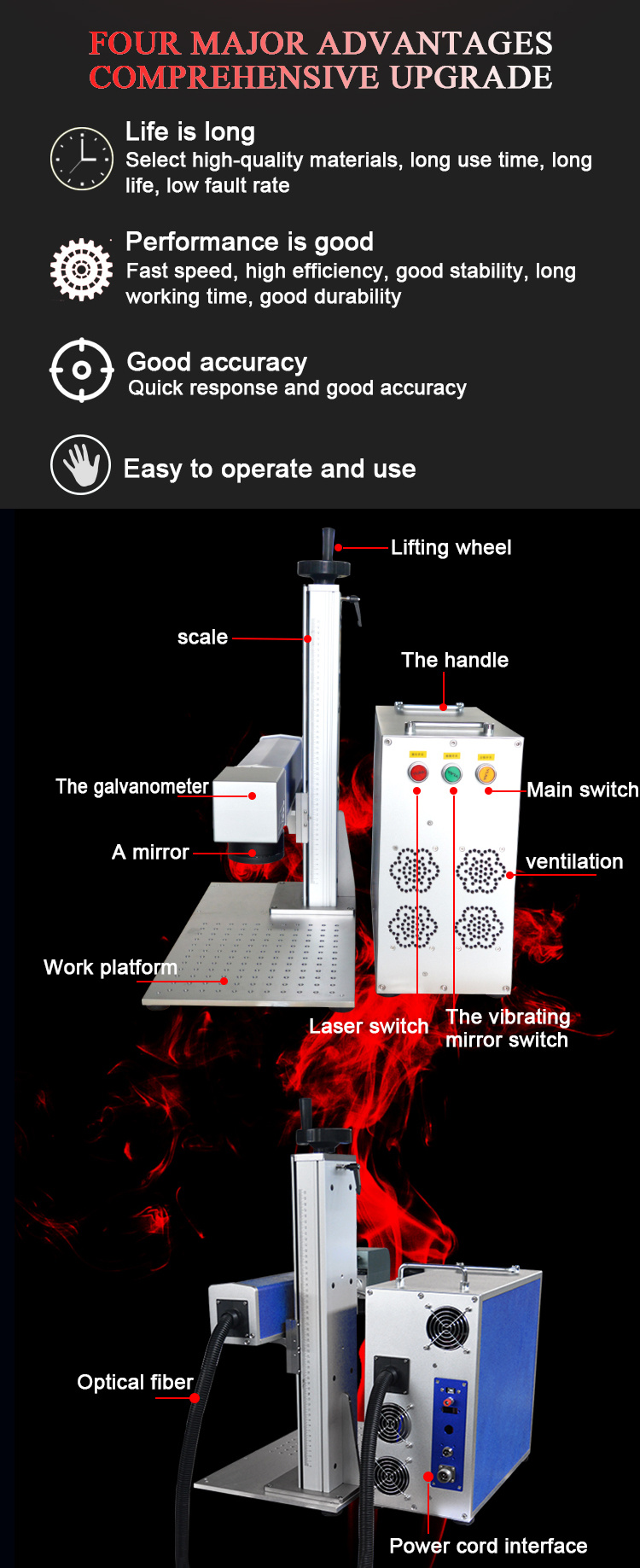

Machine details:

Model

JW-F20/30/50  split type

Laser power

20W/30W/50W  max

Laser Wavelength

1064±10nm

Q-frequency

20KHz~100KHz

Divergence

0.3mard

Marking range

110*110mm/150*150mm/200*200mm/300*300mm

Minimum line width

0.01mm

Minimum character

0.1mm

Marking speed

7000mm/s

Marking depth

0 ~1mm

Engraving line speed

≤7000mm/s

Repeatability accuracy

±0.001mm

Marking Format

Graphics, text, bar codes, two-dimensional code,

automatically marking the date, batch number,

seral number,frequency,etc.

Graphic format supported

bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.

working voltage

220V±10%/50Hz/4A

Unit power

<0.5kw

Working environment

Clean and dust free or dust less

Working (Humidity)

5%-75%,free of condensed water

Laser module life

100000 hours

NRT

35kg

GRT

60KG

Machine size

75*69*55 cm

Pakage size

85*45*76 cm

Warranty

12 months

Shipping and packing:
1.Every machine is packed with great care and tough material.
2.It is packed with cling films first and then film bags.
3.At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea or by train.

Our company:
1.Liaocheng Dongchangfu jingwei Equipment Co., Ltd. which located in Liaocheng City,Shandong Province, China.
2.It was established in 2010. With years' development,now we grow up to be a professional factory which owns the complete system manufacturing, sales and service integration.
3. We are now specializing in manufacturing laser engraving & cutting machine, desktop laser stamp engraving machine, fiber laser marking machine,laser tube, liner guide seat, laser heads, working platform for laser machine, and WD series engraving and cutting machines under outstanding quality.
4.Jingwei laser has been successfully improved the OEM services for the key parts or complete machines to many
ofoverseas distributors and agents.

Our service:
1.Pre-sales service
A. Free sample making.For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Test before you buy.
B. Progressing Solution Design.According to customer's product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
2.After-sales service:
A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.
B. You can come to our factory for training. Jingwei will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility,we will also provide accomadation during training period.
C.If the problems cannot be solved on line our engineers also service machinery overseas.

FAQ:

Q1:Which model should I choose?  A: It depends on your demands..

Q2:Which laser power should I choose?

A: This depends on the materials and max cutting/engraving/marking thickness.

Q3:The means of transportation ?  A:By DHL/TNT/UPS/Fed EX/By express/By sea

Q4:Terms of payment  A:1.By T/T  2.Western Union 3.Paypal 4.One touch etc.



Q5:How often should I clean lens?  A:It depends on the materials you process
